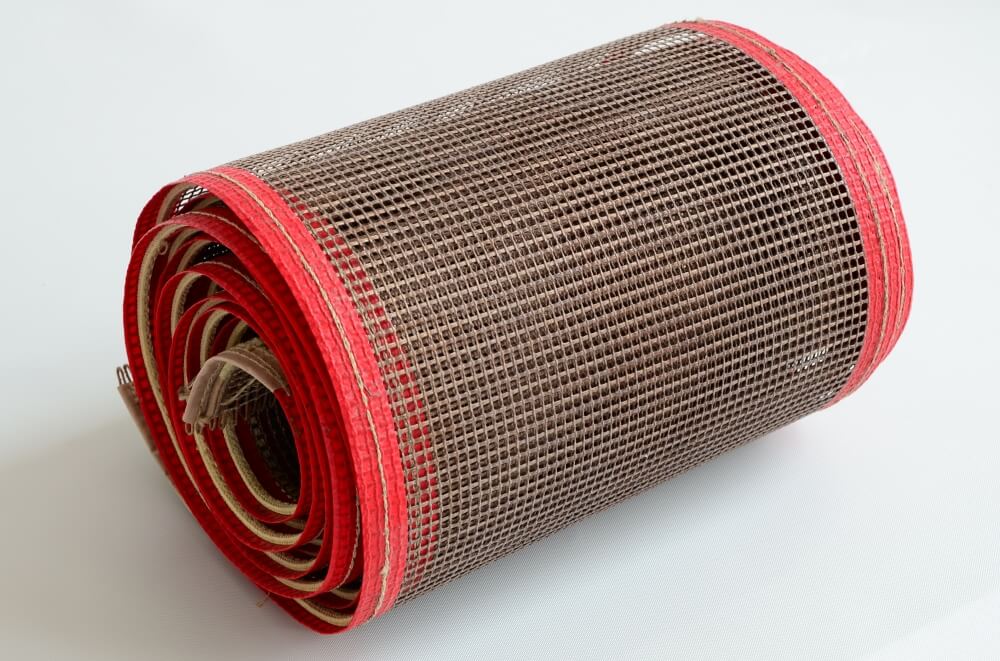

Food Grade Teflon Mesh Conveyor Belt

Free samples of Teflon conveyor belt are available

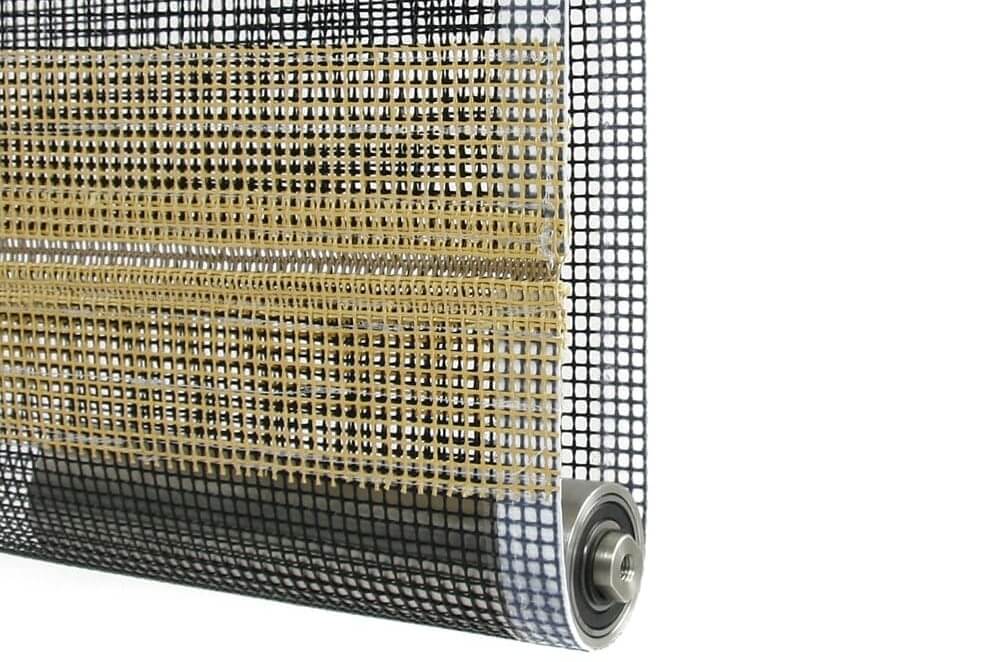

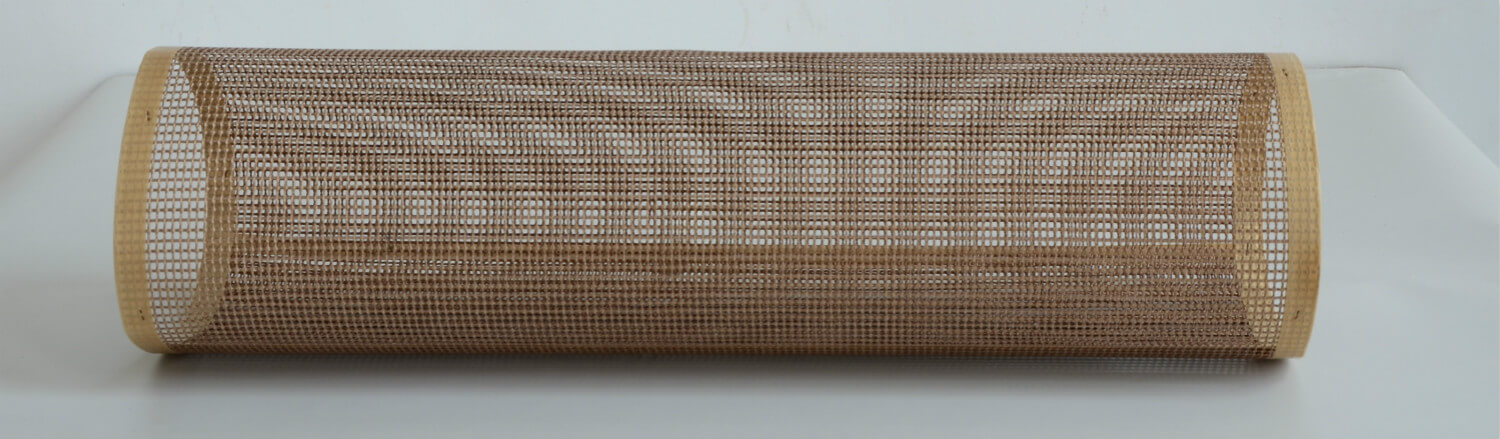

PTFE Mesh Conveyor Belts

PTFE mesh conveyor belt is made of fiberglass mesh or aramid(Kevlar) mesh impregnated with PTFE(Teflon). The belts combine the non-stick surface and heat resistance of polytetrafluoroethylene and with the strength and dimensional stability of Fiberglass/Kevlar.

The unique behaviour of these materials results in a product that is more practical and cost-effective than conventional belting materials which is ideal for the demands of many different industrial conveyor applications.
Main mesh size: 1mm*1mm, 2mm*2.5mm, 4mm*4mm, 8mm*8mm and 10mm*10mm
Color: Brown, Black or Beige
Size can be customized , please contact us to get more information . you can leave a message, we will contact you as soon as possible.

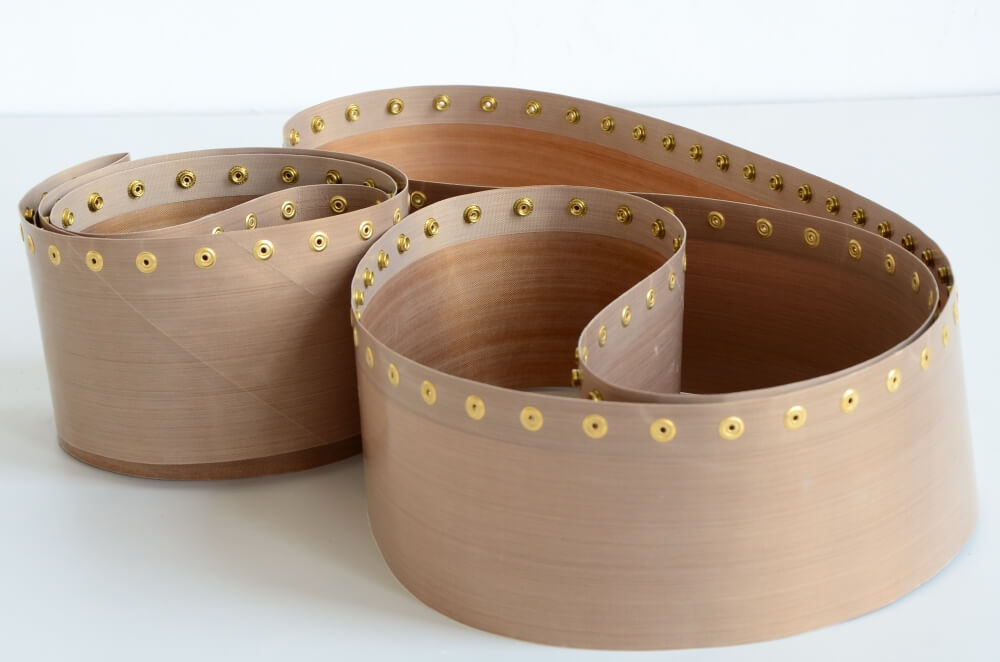

PTFE conveyor belts are divided into PTFE mesh conveyor belt, PTFE coated fiberglass belt, PTFE seamless belt, PTFE belt joint type and laminated PTFE conveyor belt.

Features

High temperature resistance – working range: -70℃～260℃.
Non-sticky, stains can be easily removed.
Chemical resistance, resisting all kinds of organic solvent.
Good dimensional stability, high strength, excellent mechanical properties.
Anti bending fatigue, can be used for smaller wheel diameter.
Drug resistance, non-toxic. Resistant to almost all pharmaceutical items.
Fire retardant.
Air permeability, reducing heat consumption, improving drying efficiency.

APPLICATION

The mesh belt can be used for the application of hot air and hot processing.

Drying tunnel & room of textile, printing, bleach and dyeing, fabric shrinking, non-woven cloth drying.
Drying tunnel & room of loose dryer, offset printing machine, paper greasing, UV light-curing machine, ultraviolet ray drying machine, plastic and silk drying.
Others: High wave drying, Micro-wave drying, food baking, cooking, grilling, rapid drying of flux type ink and conveyor belt in the drying room.

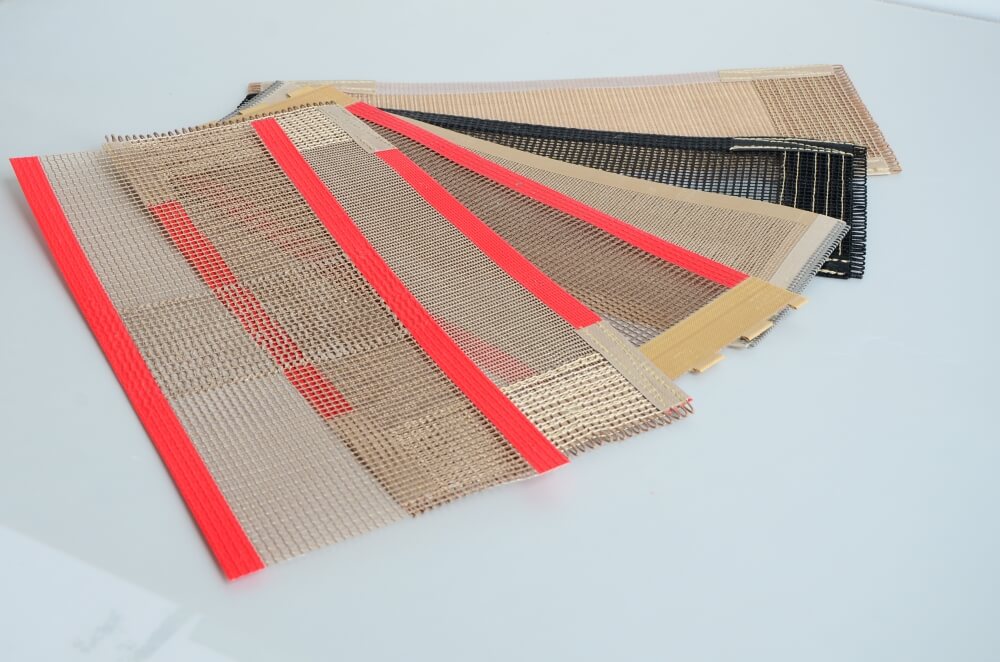

EDGE COVERING

PTFE Film

Use pure PTFE film with color red, black or white.

PTFE Cloth

Normally use 0.13mm PTFE cloth.

Kevlar Cloth

With very high strength but expensive material.

SELECTING THE TEFLON MESH BELT

Made according to customer’s spec.
If you do not need mesh , you can choose Teflon fabric conveyor belt ( details please refer to the Teflon fabric conveyor belt )
Bindings and joints shall be used technically, details please refer to the related illustration.
If the width of the belt is more than 2m, double weft or kevlar belt will be recommended to ensure the strength.

JOINTS

There are different varieties of Joint can be customized as your request.

Wall Joints

Aligator Joints

Latch-Like Joints

Screw-Like Joints

Bull nose Joints

Butt-type Joints

Product Parameter

Item No.	Color	Thickness (mm)	Total weight (g/m²) ±5%	Tensile Strength (N)		Mesh (mm)
Item No.	Color	Thickness (mm)	Total weight (g/m²) ±5%	Warp	Weft	Mesh (mm)
PT-1095	brown	0.68	560	3430	3430	1×0.5
PT-1091	brown	0.55	520	3430	3430	1×1
PT-1092	brown	0.67	540	2540	1764	2×2.5
PT-1090	brown	0.82	480	1764	2548	4×4
PT-1090S	brown	0.95	580	1960	3234	4×4
PT-1090SH	brown	1.05	740	2940	3724	4×4
PT-1090TH	brown	1.15	1100	2940	4900	5×5
PT-1090YH	brown	1.4	1180	3920	4116	5×5
PT-9088	brown	1.0	500	2156	2646	8×8
PT-1010	brown	1.0	470	1862	2646	10×10
PT-1092C	black	0.67	540	2450	1764	2×2.5
PT-1090C	black	0.82	480	1960	2450	4×4
PT-1090CS	black	0.95	580	1960	3234	4×4
PT-1090B	white	0.95	580	1470	2842	4×4
PT-1092B	white	0.37	520	2450	1764	2×2.5
